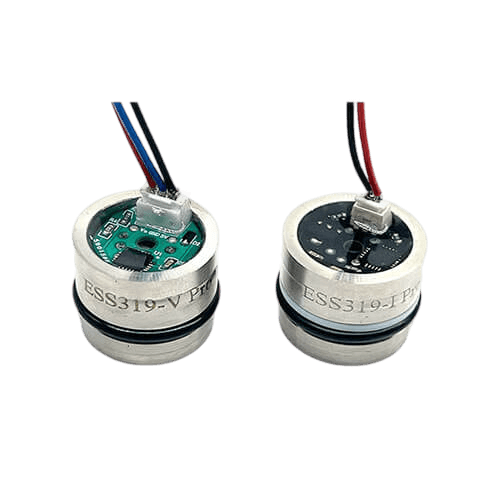

ESS319-I/V Pro Silicon Pressure Sensor Module
ESS319-I/V Pro, which Integrated the PCB + Sensor Cell Together, is the upgraded version of silicon pressure sensor module, NO Additional Wires and PCB Connection job but maintain the same dimension size of 19mm*15mm.
Like its previous type, ESS319-I/V Pro also incorporate signal conditioning and amplification circuitry directly into the sensor housing or package. This integrated circuitry takes the millivolt-level signal from the sensing elements and amplifies it to a higher-level, standardized output signal, such as 0-5V or 4-20mA.
ESS319-I/V Pro is kind of the All-in-One & Integrated solution that easy for connection and transmitter build, it is also designed to produce 4-20mA (ESS319-I Pro) or 0-5V/0.5-4.5V(ESS319-V Pro) analog output signal, as well as digital I2C (ESS319-IIC), pressure range from 0.1bar to 1000bar/G/S/A.
Features & Benefits
- Pressure range 0-0.1bar-1000bar
- Pressure Type: G/S/A
- Constant Current/Voltage power supply
- Integrated PCB+Sensor Cell
- Size: Φ19mm*15mm
- Full Stainless Steel 316
- Temperature compensation -10℃～80℃
- Long-term stability ±0.25%FS/year
Applications
- Industrial process control
- Level measurement
- Gas, liquid pressure measurement
- Pressure checking meter & calibrator
- Liquid pressure system and switch
- Cooling equipment & A/C system
- Aviation and navigation inspection
- Pneumatic and hydraulics systems
ESS319-I/V Pro Technical Data
| Measuring Range & Output | ||||
|---|---|---|---|---|
| Range | Overload Pressure | Output/F.S (mV) | Typical Value(mV) | Pressure Type |
| 0~7 kPa | 300% | 65-80 | 55 | G |
| 0~10 kPa | 300% | 35～60 | 45 | G |
| 0~35 kPa | 300% | 55～80 | 70 | G/A |
| 0~70 kPa | 300% | 55～80 | 60 | G/A |
| 0~100 kPa | 300% | 60～85 | 75 | G/A |
| 0~200 kPa | 300% | 65～85 | 75 | G/A |
| 0~400 kPa | 300% | 60～80 | 70 | G/A |
| 0~1.0 MPa | 200% | 80～120 | 100 | G/A |
| 0~2.0 MPa | 200% | 50～70 | 60 | G/A |
| 0~3.5 MPa | 200% | 100～120 | 110 | G/S/A |
| 0~7.0 MPa | 200% | 120～150 | 135 | S/A |
| 0~10 MPa | 200% | 180～230 | 200 | S/A |
| 0~25 MPa | 150% | 140～170 | 150 | S/A |
| 0~40 MPa | 150% | 230～280 | 250 | S/A |
| 0~60 MPa | 150% | 100～160 | 130 | S/A |
| 0~100 MPa | 150% | 100～150 | 120 | S/A |
| Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge. | ||||
| Technical Parameters - Range 0-1Mpa-100Mpa | |||
|---|---|---|---|
| Parameters | Typ. | Max. | Unit |
| Nonlinearity | 0.2 | 0.5 | %FS |
| Hysteresis | 0.05 | 0.08 | %FS |
| Repeatability | 0.05 | 0.08 | %FS |
| Zero Output | ±1 | ±2 | mV DC |
| FS output | 100 | 250 | mV DC |
| Input/ Output Impedance | 2.6 | 5.0 | kΩ |
| Zero Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Sensitivity Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Long-term Stability | 0.5 | %FS/year | |
| *** The typical value of 0~10kPa & 0~20kPa's zero temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| *** The typical value of 0~10kPa & 0~20kPa's sensitivity temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| Construction Performance | |
|---|---|
| Diaphragm | Stainless Steel 316L |
| Housing | Stainless Steel 316L |
| Pressure leading tube | Stainless Steel 316L |
| O Ring | Φ19mm(nitrile rubber or viton) |
| Measuring Medium | Which is compatible with SS316L, viton, nitrile rubber |
| Packing Medium | Silicon Oil |
| Net weight | 30g-45g |
