EST3110 Air Compressor Pressure Transmitters

Clear

EST3110 Air Compressor Pressure Transmitters

EST3110 line is low-cost pressure transmitter of high quality and reliability. Aiming for both civil and industrial purposes, the product is available for OEM. Being small in size and light in weight, the compact product is widely used for the field measurements of compressors, automobiles and air conditioners.

Features

  • Pressure type: Gauge Pressure
  • Range: 0~5bar~50bar
  • Accuracy: ±0.5%F.S, ±1.0%F.S, ±2.0%F.S
  • Stability: 0.5%F.S/Year (typical), 1.0%F.S/Year (maximum)
  • Customized working temperature: -40℃~120℃
  • Signal Output: 4~20mA, 0.5~4.5V
  • Power supply: 10~30Vdc
  • Ingress Protection: IP67
  • OEM: Available

EST3 Series Pressure Transducer for Air Compressor | Air Conditioning | HVAC

ModelEST3110EST3110 BEST3120
EST3110EST3110BEST3120
Data SheetDownloadDownloadDownload
Range0~5bar…50bar0~5bar…50bar0~5bar…50bar
Accuracy±0.5%,±1.0%,±2.0%±1.0%,±4.0%±0.25%,±0.5%,±1.0%
Power Supply 10~30Vdc12~30Vdc10~30Vdc,5Vdc
Output 4~20mA,0.5~4.5V4~20mA,0.5~4.5V4~20mA,0.5~4.5V
Electrical ConnectionPackardM12X1/ GX12/16-7DIN43650, IP65; GX 16-7
Pressure ConnectionG1/4, NPT1/4, 7/16-20UNFG1/4, NPT1/4, 7/16-20UNFM20 x 1.5, G1/4, G1/2, NPT1/4, 7/16-20UNF
Ingression ProtectionIP67IP45/ IP65IP45/ IP68
ModelEST3122EST3135EST3123
EST3122EST3135EST3123
Data SheetDownloadDownloadDownload
Range0~5bar…50bar0~5bar…50bar0~5bar…50bar
Accuracy±0.5%±1.0%,±2.0%±0.5%,±1.0%
Power Supply 10~30Vdc,5Vdc5±0.25Vdc5Vdc
Output 4~20mA,0.5~4.5V0.5~2.5…4.5Vdc0.5~2.5…4.5Vdc
Electrical ConnectionPackard, DIN43650PackardPackard
Pressure Connection7/16-20UNF, 9/16-20UNFCooper Pipe Connection7/16-20UNF, 9/16-20UNF, M20 x 1.5, G1/4
Ingression ProtectionIP65IP65IP65

Application

Frequency Compressor | Building water supply | Hydraulic control | Air conditioning unit | Automobile engine | Automatic detection system | Hydraulic station| Refrigeration equipment

Technology

Piezoresistive based transducers rely on the piezoresistive effect which occurs when the electrical resistance of a material changes in response to applied mechanical strain. In metals, this effect is realized when the change in geometry with applied mechanical strain results in a small increase or decrease in the resistance of the metal. The piezoresistive effect in silicon is due primarily to changes at the atomic level and is approximately two orders of magnitude larger than in metals.

Sputter deposited thin film pressure sensor is a kind of Piezoresistive pressure sensors, difference exist that the thin-film sensor consists of a resistor pattern that is vaporized or sputter-deposited  onto the force-summing element (the measuring diaphragm). In some transducers the resistors are not directly mounted on the diaphragm but are on a beam linked to the diaphragm by a push rod.

Accuracy and range for EST 3 series

eastsensor accuracy map

eastsensor map map

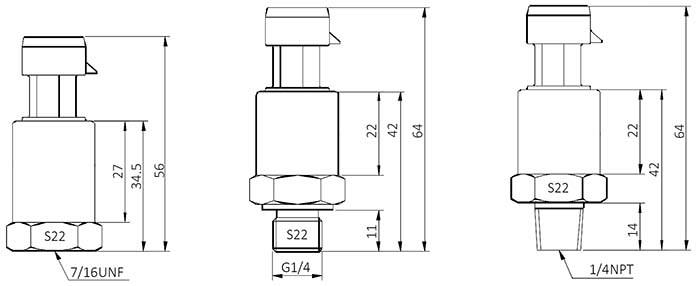

EST3110 Air Compressor Pressure Transmitters drawing

Click to download

  • General Instruction and Datasheet-EST3110 GID-3-EV01
