Piezoresistive and Piezoelectric Transducers, while both types of sensors measure pressure, but they operate on different principles and have distinct characteristics.
Their fundamental operating principles lead to distinct advantages in different applications. The choice between Piezoresistive and Piezoelectric Transducers depends on the specific requirements of the measurement task, including the nature of the pressure (static or dynamic), environmental conditions, power availability, and the desired measurement characteristics.
Let’s compare them based on their technical features and industry use, and then discuss scenarios where they cannot be replaced by each other.
If your time is limited, you can go directly to the FAQ section at the end and look for the parts that interest you, as this is the most efficient approach.
Understanding Sensing Technologies
Piezoresistive Sensors: Changing Resistance Under Pressure
Imagine a special material that changes its electrical resistance when you apply pressure or strain. That’s exactly what piezoresistive transducers do!
- In metals, slight changes in shape under pressure cause tiny resistance changes.
- Silicon is even more sensitive – its resistance changes dramatically when stressed.
- When stress is applied, the material’s electrical properties shift at the atomic level.

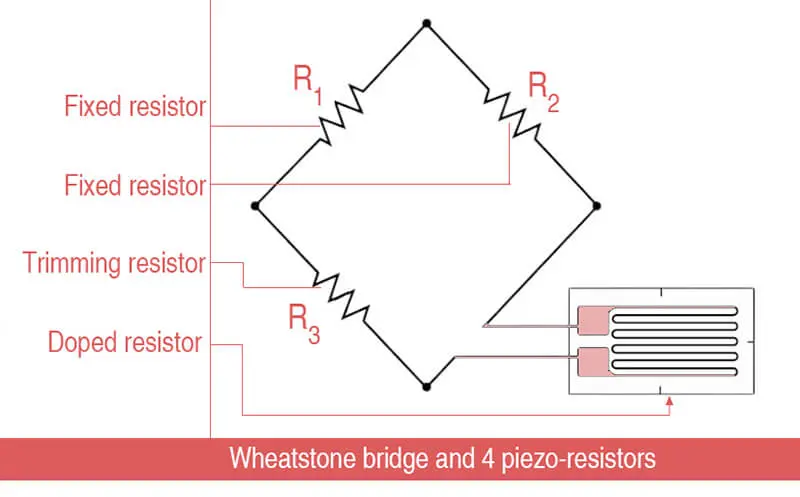

- By placing these special resistors in a specific electrical circuit (Wheatstone bridge), you can measure pressure precisely.

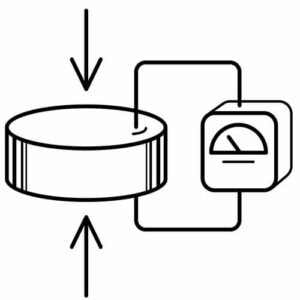

Piezoelectric Sensors: Generating Electricity from Pressure
Piezoelectric transducers are like magical crystals that generate electricity when squeezed:
- Certain natural crystals like quartz can create electrical charges when stressed.
- When pressure is applied, the crystal’s internal structure rearranges, producing an electrical signal.
- Scientists can even create artificial ceramics that are much more sensitive than natural crystals.
How They Work
Comparison between Piezoresistive and Piezoelectric Transducers:
Piezoresistive: Think of these sensors like a stretchy band. When pressure bends a tiny silicon chip inside, its electrical resistance changes, which is converted into a readable signal.
Piezoelectric: These use crystals that produce a small spark (charge) when squeezed. This charge is measured, but it fades quickly, so they can’t detect steady pressure.
Key Differences and Features
Piezoresistive Sensors:
- Need external power to work
- Change resistance based on mechanical strain
- Good for precise pressure measurements
Piezoelectric Sensors:
- Self-generating (create their own electrical signal)
- Work without external power
- Excellent for dynamic pressure and force measurements
- Often require specialized amplification equipment
Advanced Piezoelectric Designs
Some modern piezoelectric sensors come with built-in electronics:
- Called IEPE (Integrated Electronic PiezoElectric) transducers
- Have internal amplifiers
- Provide easier signal processing
- However, they struggle with constant (DC) measurements
Important Limitation
Piezoelectric sensors aren’t great for measuring steady or constant pressures. They work best with changing or dynamic forces.
This explanation breaks down complex technical information into more digestible language, maintaining the core technical insights while being more accessible to a broader audience.
Key Differences at a Glance

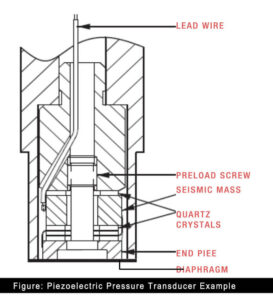

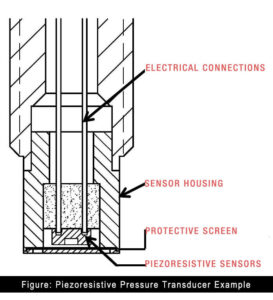

| Feature | Piezoresistive Sensors | Piezoelectric Sensors |
|---|---|---|
| How They Work | Measure resistance changes in silicon under strain. | Generate electric charge when crystals are squeezed. |
| Static Pressure | ✅ Can measure steady pressure (e.g., tire pressure). | ❌ Only measures changing pressure (e.g., engine vibrations). |
| Accuracy | 0.1%-0.5%-1.0%/FS | 1.0%-2.0%-3.0%/F |
| Overpressure | 2X to 50X | 2X to 50X |
| Size | Tiny (as small as 0.055" diameter). | Bulky (smallest is ~0.19" diameter). |
| Temperature Range | -320°F to 1000°F (unamplified). | -320°F to 1040°F (limited by crystal type). |
| Vibration Sensitivity | Low (0.00015 PSI/g). | High (0.002 PSI/g). |
| Cost (Sensor) | Low-Medium XX | Medium-High XXX |
| Cables | Standard shielded wires (cheap). | Special low-noise cables (expensive). |
| Durability | Rugged, ideal for harsh environments. | Sensitive to installation errors and shock. |
| Power Needs | Requires external power (5–15V) | Self-powered (no external juice needed) |
| Signal Output | Voltage (0–10V) or current (4–20mA). | Charge or voltage (needs amplifiers). |
| Industry | - Process control in industrial settings - HVAC systems - Automotive applications (tire pressure, engine management) - Medical devices (blood pressure monitoring) - Weather stations (barometric pressure) - Hydraulic and pneumatic systems | - Engine combustion analysis - Blast pressure measurement - Shock wave studies - Aerodynamics and wind tunnel testing - Ballistics and explosive testing - Hydraulic system dynamics - Turbine blade pressure measurement |
| Construction |  |  |
Where These Sensors Cannot Replace Each Other
Choosing between piezoresistive and piezoelectric transducers depends on your specific application and requirements.
Pick Piezoresistive if you need:
Static + dynamic measurements, small size, low cost, or ruggedness.
Pick Piezoelectric if you need:
High-frequency dynamic measurements (e.g., sound waves) and don’t mind higher costs.
a) Static Pressure Measurement
Piezo-resistive sensors are suitable for static pressure measurement, while piezo-electric sensors are not. In applications requiring continuous monitoring of steady pressure, such as in process control or altimeters, piezo-resistive sensors must be used.
b) High-Frequency Dynamic Pressure
For measuring rapidly changing pressures or pressure pulses, like in engine combustion analysis or shock wave studies, piezo-electric sensors are far superior. Piezo-resistive sensors often can’t match the high-frequency response of piezo-electric sensors.
c) Self-Powered Applications
In scenarios where external power is not available or desirable, piezo-electric sensors can operate without a power supply. Piezo-resistive sensors always require external power and thus cannot be used in such situations.
d) Long-term Pressure Monitoring
For applications requiring continuous long-term pressure monitoring, such as in weather stations or geological studies, piezo-resistive sensors are preferred. Piezo-electric sensors are prone to signal drift in long-term static measurements.
e) Extreme Temperature Environments
Piezo-electric sensors generally have better performance in extreme temperature environments. In applications with wide temperature variations, like in aerospace or automotive testing, piezo-electric sensors might be the only viable option.
f) Size-Constrained Applications
In some special cases, Piezo-electric sensors can be made extremely small without losing sensitivity. In applications where sensor size is a critical factor, such as in some medical devices or miniaturized pressure probes, piezo-electric sensors might be the only feasible choice.
FAQ
What’s the main difference between piezoresistive and piezoelectric sensors?
Piezoresistive: Measure static and dynamic pressure by detecting resistance changes in silicon under strain.
Piezoelectric: Measure only dynamic pressure (rapid changes) by generating electric charge when crystals are compressed.
Which sensor is better for steady pressure measurements (e.g., tire pressure)?
Piezoresistive sensors are ideal for static pressure. They work like a strain gauge and can hold a stable signal.
Piezoelectric sensors cannot measure steady pressure because the charge they generate fades over time.
Which sensor is smaller and why does size matter?
Piezoresistive sensors are much smaller (as tiny as 0.055” diameter). Their silicon-based design allows miniaturization.
Piezoelectric sensors are bulkier (≥0.19” diameter) due to their crystal structure.
Why it matters: Smaller sensors fit in tight spaces (e.g., aircraft wings, medical devices) and reduce installation complexity.
Which handles extreme temperatures better?
- Piezoresistive: Operate from -320°F to 1000°F (unamplified). Use Silicon-on-Insulator (SOI) tech for stability.
- Piezoelectric: Range varies by crystal type. Most work up to 1040°F, but lose accuracy near their “Curie temperature” (where crystals depolarize).
Why are piezoelectric sensors more expensive?
Sensor cost: High-quality crystals and compensation elements raise prices (650–6,200).
Accessories: Require costly low-noise cables (1.50/foot) (upto 3,000).
Piezoresistive systems use cheaper cables and often don’t need external amplifiers.
What industries use these sensors?
- Piezoresistive: Aerospace, automotive (engine monitoring), medical devices, industrial systems.
- Piezoelectric: Explosive testing, acoustic research, engine knock detection, high-frequency vibration analysis.
Do these sensors need special installation?
Piezoresistive: Easy to install. Tolerate minor mounting errors.
Piezoelectric: Sensitive to torque or bending during installation. Over-tightening can distort readings.
Which lasts longer?
Piezoresistive: Silicon sensors have stable performance for years (≤0.1% drift/year).
Piezoelectric: Crystals degrade over time (≤0.5% drift/year) and lose sensitivity if overheated.
Can I measure both static and dynamic pressure with one sensor?
Yes—use a piezoresistive sensor. It handles both types, while piezoelectric sensors only measure dynamic changes.
Why choose piezoelectric sensors at all?
They excel in ultra-high-frequency applications (e.g., sound waves, explosions) where rapid pressure changes occur. However, they require careful setup and budget for accessories.
