ESC202 Intelligent Pressure Controller

Clear
SKU: N/A Category: Tag:

ESC202 Intelligent Pressure Controller

ESC202 series is an Intelligent Pressure Controller product for pressure testing and controlling. It integrates functions of measuring, display, output and control all in one. It has a complete electronic structure. Oil-filled piezorestive pressure sensor with diaphragm is applied in the front part. The output is processed by high-precision & low-temperature drift amplifier, and then transformed by high accuracy A/D converter into digital signal that could be processed by MPU (Micro Processor Unit). The processed signals control two switches then to test & control the pressure performance.

With flexible application, simple handling, easy debugging and high reliability, this product has been widely applied to test & control the pressure of fluid medium in many industries including areas of hydroelectricity, city water, oil, chemical, machinery hydraulic system etc.

Features

  • Pressure type: Gauge
  • Casing Diameter: Φ100
  • Display: 4-digit LED
  • Pressure Range: 0~100Mpa
  • Precision: 0.2%F.S
  • Stability: ≤1%F.S/Year
  • Power supply: 24Vdc/220Vac
  • Working temperature: -20~70℃
  • Display range: -1999~9999
  • OEM: Available

Drawing & Specification

Bottom mounting for range under 100KPa

ESC202 Intelligent Pressure Controller drawing bottom

Back siding mounting

ESC202 Intelligent Pressure Controller drawing back

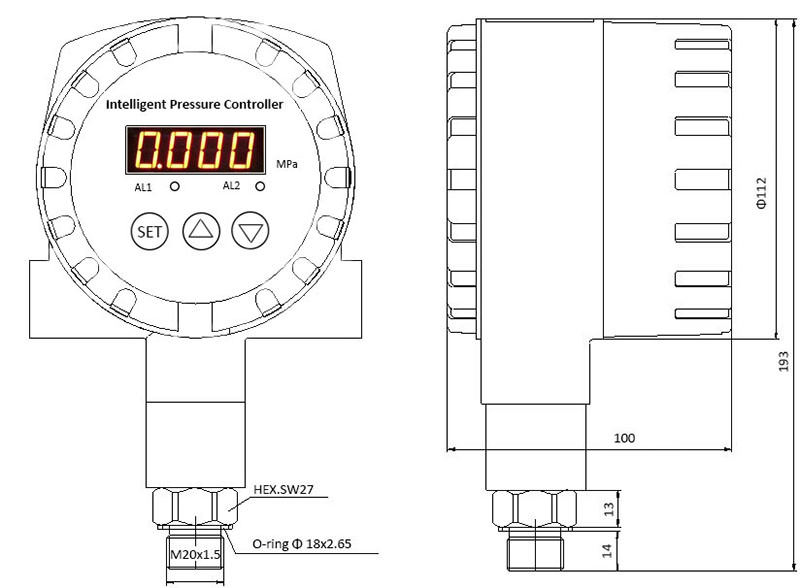

Explosion-proof type

ESC202 Intelligent Pressure Controller ex-proof

Measuring rangeStabilityDisplayAccuracyOverloadWorking temperature
0~100MPa≤0.1%F.S/Y0.56”Digital LED0.2%F.S2 times-20~70℃
Power supplyPressure connectionPressure typeDisplay rangeRelative humidityCasing material
24Vdc/220VacM20x1.5,G1/2,G1/4Gauge-1999~9999≤80%304SS
